MOST ADVANCED LIGHT-BASED SYSTEM FOR THE COSMETIC & AESTHETIC MARKET
Modularity

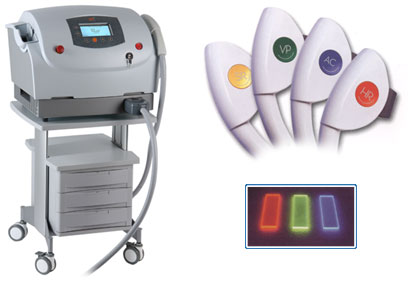

With its modular and versatile design, the Lovely I platform offers four interchangeable handpieces for a wide range of clinical applications: removing unwanted hair (650-950 nm, red-indicator), clearing up acne (420-950 nm, blue-indicator), removing pigmented and vascular lesions (540-950 nm, green indicator) and revitalizing the skin (570-950 nm, yellow indicator). For each handpiece, the energy density per cm2 (fluence) ranges from 5 to 20 J/cm2, with a spot size of 6.4 cm2 (40 x 16 mm) and a pulse repetition rate of 1/3Hz.
Technology
The Lovely I light energy optimization (LEO™) proprietary technology incorporates significant advancements with respect to electro-optical engineering and light-skin interaction design using AFT™ and EDF™. Advanced fluorescence technology (AFT) is based on a selective high intensity light source which converts UV and other short wavelengths into more usable spectra of blue, green and red visible light. In order to enhance skin-light interaction, the Lovely I system delivers lower peak power but at an equally distributed fluence (EDF) for pulse widths of up to 50 msec. In order to achieve the safest and most effective results, each handpiece has three distinct pulse width modes: narrow pulse width (short, 10-30 msec) for light skin (Fitzpatrick skin type I-II), medium pulse width (medium, 12-40 msec) for darker skin (Fitzpatrick skin type III-IV), and broad pulse width (long, 15-50 msec) to be used on dark skin (Fitzpatrick skin type V-VI).
|
| Technical Specifications : |
 |
| Light Source |
LEO |
| Wavelengths (nm) |
420, 540, 570,
650 - 950 |
| Pulse Method |
Pulsed, single |
| Fluence (J/cm2) |
5-20 |
| Pulse width (msec) |
10, 12, 15, 20,
30, 40, 50 |
| Spot size (mm) |
16 x 40 |
| Pulse/sec (Hz) |
1/3 |
| Dimensions (cm) |
65 x 45 x 40 |
|
 |
|
|
